Solusi Data Logger di Indonesia

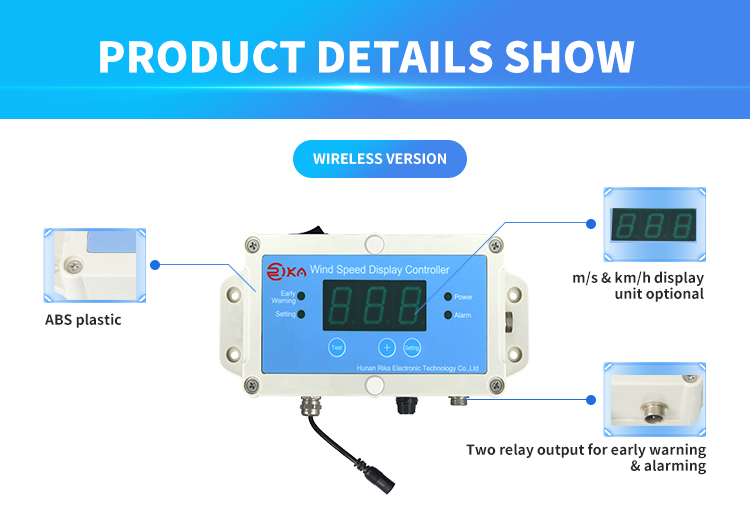

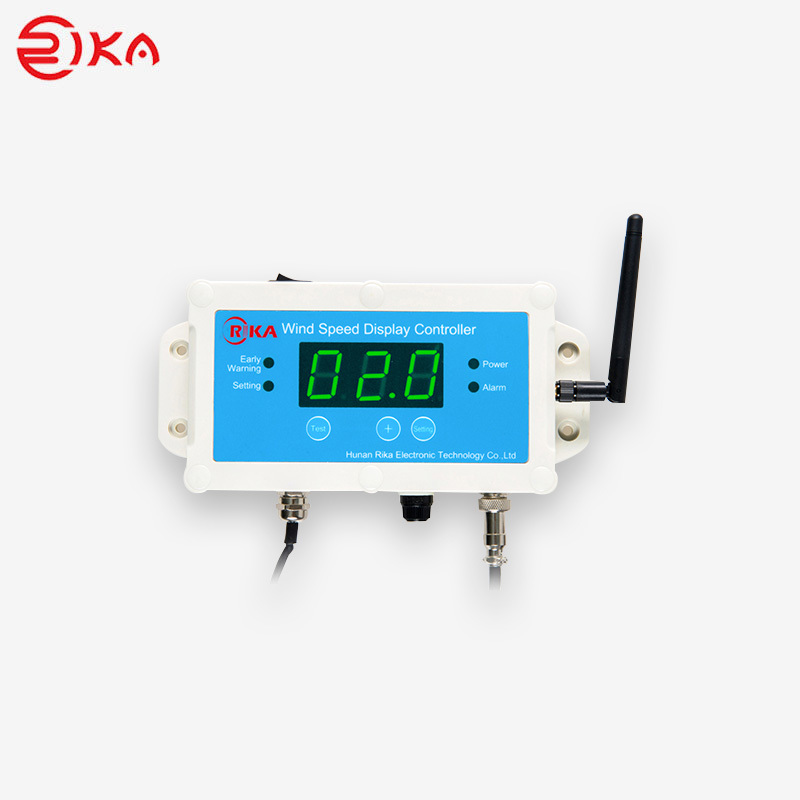

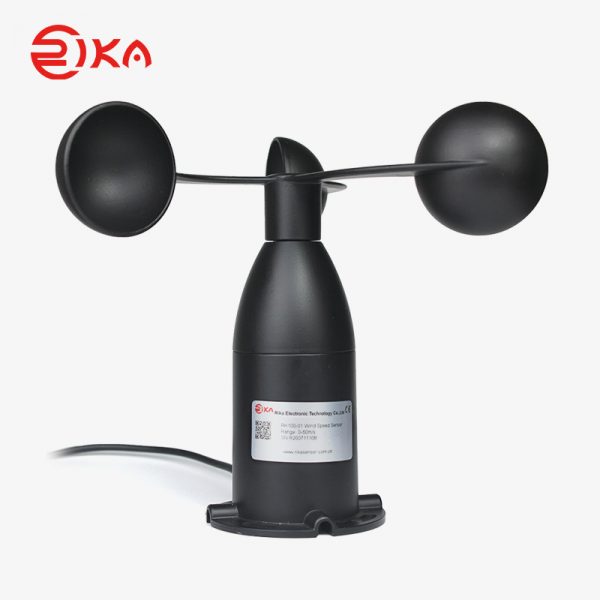

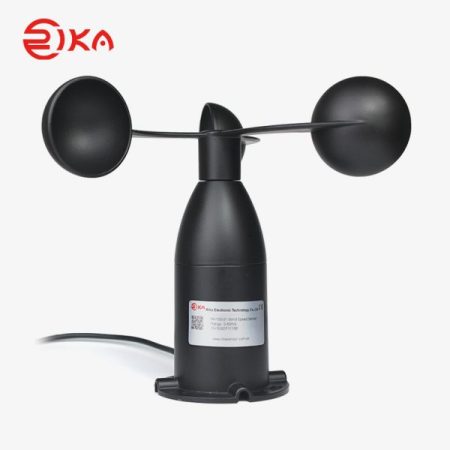

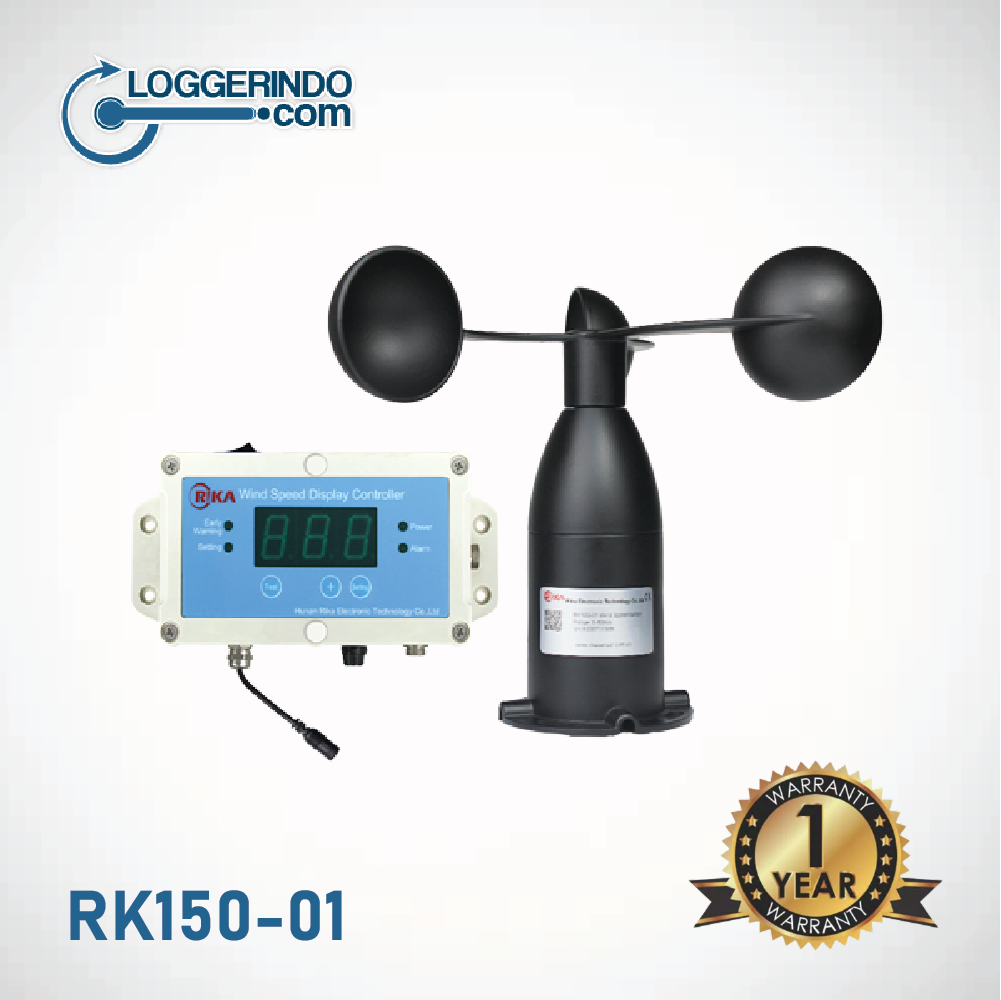

Pengontrol tampilan kecepatan angin RK150-01 memberikan indikasi visual kecepatan angin waktu nyata, dengan tampilan digital LED. Di cangkang rumahnya, bangun mikroprosesor dengan fungsi kinerja tinggi, konsumsi daya rendah. Nilai peringatan dini kecepatan angin dan nilai alarm dapat diatur dengan tombol pada panel. Saat mengkhawatirkan, keluaran sinyal dapat dikontrol oleh relai. RK150-01 adalah pendamping sensor kecepatan angin RK100-01.
| Items |
Specification |
|
| Range | 0-60m/s | 0-216km/h |
|---|---|---|
| Resolution(display) | 0.1m/s | 0.1km/h(<100km/h) 1km/h(≥100km/h) |
| Accuracy(sensor) | ±1m/s | |
| Alarm response time | <100mS | |
| Type of alarm | Sound and light alarm | |
| Contact capacity | 5A@30VDC | |
| Early warning | Any value within 1 m/s ~40 m/s, the early warning value must be lower than the alarm value | Any value within 1km/h ~99km/h, the early warning value must be lower than the alarm value |
| Alarm | Any value within 1 m/s~40 m/s | Any value within 1km/h ~144km/h |
| Operating Temperature | -30℃-+70℃ | |
| Power supply | AC100-240V/DC12V/DC24V | |
| Power consumption | With wire:<3W(sensor & controller) | |
| Wireless:sensor: 0.25W,controller: 2.5W | ||
| Ingress Protection | Controller:IP54,wind speed sensor:IP65 | |
| Weight(unpacked) | Controller:315g,wind speed sensor:240g | |
| Main material | Controller:ABS,wind speed sensor:Aluminum alloy & 304SS | |
| Storage Condition | 10℃-50℃@20%-90%RH | |
