Deskripsi

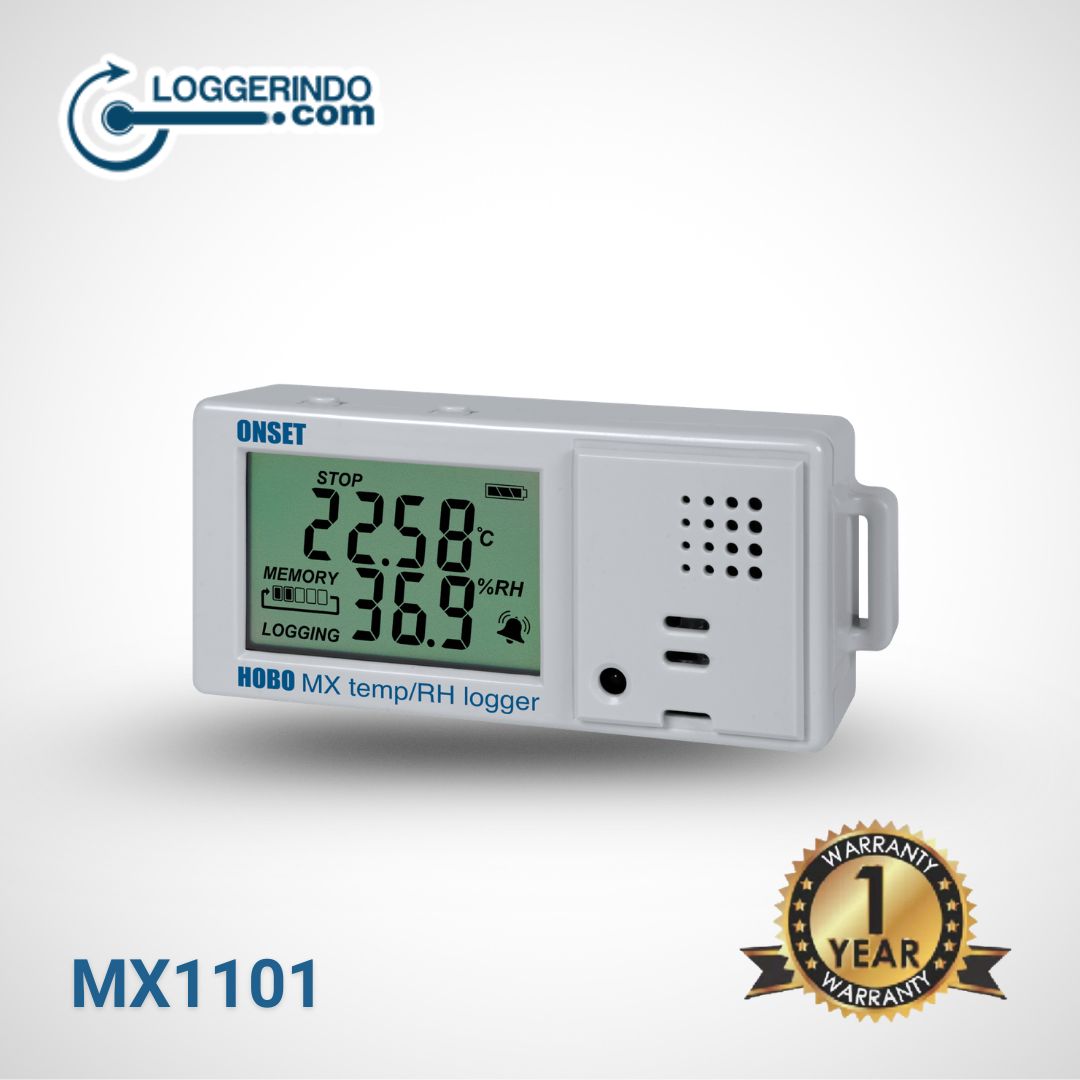

Onset HOBO MX1101 Data Logger mengukur dan mentransmisikan data suhu dan kelembaban relatif secara nirkabel ke perangkat seluler melalui teknologi Bluetooth Low Energy (BLE).
Pencatat data nirkabel bekerja dengan perangkat seluler Anda dan aplikasi HOBOconnect gratis dari Onset sehingga Anda dapat mengonfigurasi pencatat dan membaca data dalam jarak 100 kaki, tanpa memerlukan peralatan khusus lainnya. Anda juga dapat melihat data dalam grafik, memeriksa status operasional logger, mengonfigurasi pemberitahuan alarm, dan berbagi file data.
Tambahkan MX Gateway untuk akses jarak jauh ke data Anda di perangkat lunak HOBOlink berbasis cloud Onset.
Fitur
- Komunikasi nirkabel melalui teknologi Bluetooth Low Energy (BLE)
- Mudah digunakan dan dibongkar menggunakan aplikasi HOBOconnect gratis
- Alarm akan muncul apabila melewati ambang batas tinggi dan rendah
- Menyimpan 84.000 pengukuran
- Akurasi: +/- 0.2C dan +/- 2% RH
- Fitur find-me
- Teknologi konektivitas yang dipatenkan
Spesifikasi
| Temperature Sensor | |
| Range | -20° to 70°C (-4° to 158°F) |
| Accuracy | ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F) |
| Resolution | 0.024°C at 25°C (0.04°F at 77°F) |
| Drift | <0.1°C (0.18°F) per year |
| RH Sensor* | |
| Range | 1% to 90%, non-condensing |
| Accuracy | ±2.0% from 20% RH to 80% RH typical to a maximum of ±4.5% including hysteresis at 25˚C (77˚F); below 20% RH and above 80% RH ±6% typical |
| Resolution | 0.01% |
| Drift | <1% per year typical |
| Response Time | |
| Temperature | 7:30 minutes in air moving 1 m/s (2.2 mph) |
| RH | 20 seconds to 90% in airflow of 1 m/s (2.2 mph) |
| Logger | |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approximately 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0) |
| Logger Operating Range | -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal, statistics) or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | When memory full, push button, date & time, or after a set logging period |
| Restart Mode | Push button |
| Time Accuracy | ±1 minute per month at 25°C (77°F) |
| Battery Life | 1 year, typical with logging interval of 1 minute. Faster logging and/or statistics sampling intervals, entering burst logging mode, and remaining connected with the app will impact battery life. Excessive readouts, audible alarms, and paging all impact battery life. Visual alarms and other events can have a marginal impact on battery life. |
| Battery Type | Two AAA 1.5 V alkaline batteries, user replaceable |
| Memory | 128 KB (84,650 measurements, maximum) |
| Full Memory Download Time | Approximately 60 seconds; may take longer the further the device is from the logger |
| LCD | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size | 3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.) |
| Weight | 56 g (1.98 oz) |
| Environmental Rating | IP50 |
 |
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). |
*Per RH sensor manufacturer data sheet
