Deskripsi
Overview

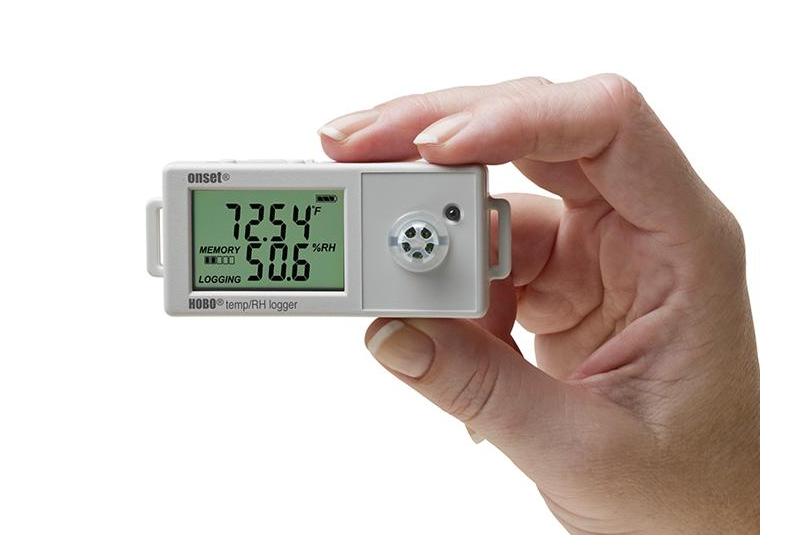

Data Logger Suhu / Kelembaban Relatif HOBO UX100-011 mencatat suhu dan kelembaban relatif (dalam akurasi 2,5%) di lingkungan dalam ruangan dengan sensor terintegrasi. Pencatat data ini ideal untuk memantau kenyamanan penghuni di gedung perkantoran, melacak kondisi penyimpanan makanan di gudang, mencatat tren suhu di ruang server, dan mengukur tingkat kelembapan di museum.
Fitur
- Tampilan LCD yang mudah dilihat
- Kapasitas memori besar
- Ambang batas alarm visual tinggi & rendah
- Mode logging Burst dan Statistik baru
- Sensor Kelembaban Relatif yang dapat diganti pengguna
Spesifikasi
Temperature Sensor
Range: -20° to 70°C (-4° to 158°F)
Accuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
Resolution: 0.024°C at 25°C (0.04°F at 77°F); see Plot A
Response time: 4 minutes in air moving 1 m/s (2.2 mph)
Drift: <0.1°C (0.18°F) per year
RH Sensor
Range: 1% to 95% (non-condensing)
Accuracy:±2.5% from 10% to 90% typical to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical
Resolution: 0.01%
Response time: 10 seconds to 90% in airflow of 1 m/s (2.2 mph)
Drift: <1% per year typical
Logger
Logger Operating Range
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/readout: 0° to 50°C (32° to 122°F) per USB specification
Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
Logging modes: Normal, Burst or Statistics
Memory modes: Wrap when Full or Stop when Full
Start modes: Immediately, Push Button, Date & Time or Next Interval
Stop modes: When Memory Full, Push Button, or Date & Time
Restart mode: Push Button
Time accuracy: ±1 minute per month at 25°C (77°F), see Plot C
Battery life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
Battery type: One 3V CR2032 lithium battery
Memory: 128 KB (63,488 measurements, maximum)
Download type: USB 2.0 interface
Full memory download time: 20 seconds
LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size: 3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.)
Weight: 30 g (1.06 oz)
Environmental rating: IP50
– The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
